PCR tubes, strips and plates
|
|
|

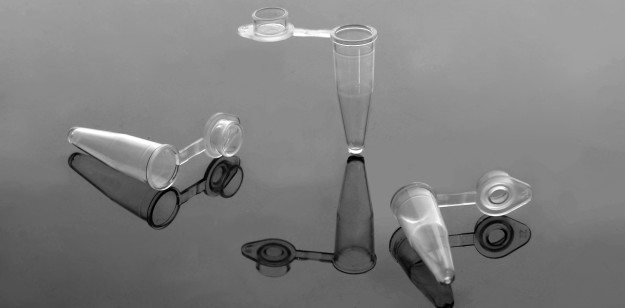

PCR Tubes
● Made
from polypropylene ● Compatible with most thermal cyclers
and real-time PCR instrument ● The thin-walled design
makes reaction liquid faster reach the target temperature because of
the high thermal conductivity ● Easy open leak proof
cap makes the loss of reaction less than 0.2%
|
Cat.
No.
|
Volume(ml)
|
Cap
type
|
Color
|
/Pack
|
/Case
|
401001
|
0.2
|
Flat
|
Clear
|
1,000
|
10,000
|
|
|
PCR 8-Strip Tubes|Caps
Nest PCR
8-Strip Tubes ● NEST
have both clear and white 0.2 ml PCR tubes which respectively
applies to the general PCR and qPCR
reactions . ● Same
Colored 0.2ml low profile PCR tubes can be applied to the same
usage. ● 15.4mm
low profile tubes are designed to minimize the condensate
contamination, particularly for the overnight
experiment . ● 0.2ml
low profile PCR tubes can also reduce the evaporation of the
reaction solution and increase the real-time
PCR fluorescent signal strength.
PCR
8-Strip Tube Caps ● Apply
to NEST PCR 8-strip tubes or PCR 96 well plate ●
Domed and
flat caps are available ● Reliable
tight sealing ● Flat
cap is ideal for qPCR
|
Cat.
No.
|
Volume(ml)
|
Specification
|
Color
|
/Pack
|
/Case
|
403101
|
0.15
|
Low
profile
|
Clear
|
120
|
1200
|
403001
|
0.2
|
High
profile
|
Clear
|
120
|
1200
|
403111
|
0.15
|
Low
profile
|
White
|
120
|
1200
|
403011
|
0.2
|
High
profile
|
White
|
120
|
1200
|
406011
|
Caps
|
Flat
|
Clear
|
120
|
1200
|
403111
|
Caps
|
Domed
|
Clear
|
120
|
1200
|
|
|
PCR 96 Well Plates
● High
quality Polypropylene material to guarantee low
protein absorption and the loss of liquid ● White
plates are ideal for qPCR ● Autoclavable
PCR Plate,
no skirt ● Plate
without skirt can be cut to any desired format.
PCR Plate,
no skirt, low profile ● The
height of low profile plate is lowered by 5.1mm; this design
minimizes the residual volume and the liquid evaporation.
PCR Plate,
no skirt, elevated wells ● Elevated
wells plates are designed to reduce the risk of cross-contamination
PCR Plate,
semi skirt ● Both
high profile and low profile semi skirt PCR plates are available ●
Compatible
with most thermal cyclers ● Stronger
construction and more space for labeling
|
Cat.
No.
|
Volume(ml)
|
Specification
|
Color
|
/Pack
|
/Case
|
402101
|
0.15
|
No
skirt,low profile
|
Clear
|
25
|
100
|
402401
|
0.15
|
Semi
skirt,low profile
|
Clear
|
25
|
100
|
402001
|
0.2
|
No
skirt,high profile
|
Clear
|
25
|
100
|
402201
|
0.2
|
No
skirt,elevated wells
|
Clear
|
25
|
100
|
402301
|
0.2
|
Semi
skirt,high profile
|
Clear
|
25
|
100
|
402111
|
0.15
|
No
skirt,low profile
|
White
|
25
|
100
|
402411
|
0.15
|
Semi
skirt,low profile
|
White
|
25
|
100
|
402011
|
0.2
|
No skirt,low profile
|
White
|
25
|
100
|
402211
|
0.2
|
No
skirt,elevated wells
|
White
|
25
|
100
|
402311
|
0.2
|
Semi
skirt,high profile
|
White
|
25
|
100
|
406011
|
Caps
|
Flat
|
Clear
|
120
|
1200
|
403111
|
Caps
|
Domed
|
Clear
|
120
|
1200
|
|
|
PCR Tube Racks
● Fit for 0.2ml tubes and strip tubes and 96 well plates ● Easily stackable to save space ● Transparent Polycarbonate lid for well identification ● Polypropylene rack can be steam sterilized
|
Cat.
No.
|
Specification
|
/Pack
|
/Case
|
407001
|
PCR tube rack, 8*12, one rack /one lid
|
5
|
25
|
407101
|
PCR
tube rack, 8*12, five racks/ one lid
|
5
|
25
|
|
